Vaunt - Worktop Jig 700mm
Vaunt - Worktop Jig 700mm - Worktop Jig is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Delivery times are estimated 3 - 5 workings days
Returning an item
Returning an item
If you are not completely satisfied with your purchase, please contact our customer service team.
Description
Description
DESCRIPTION

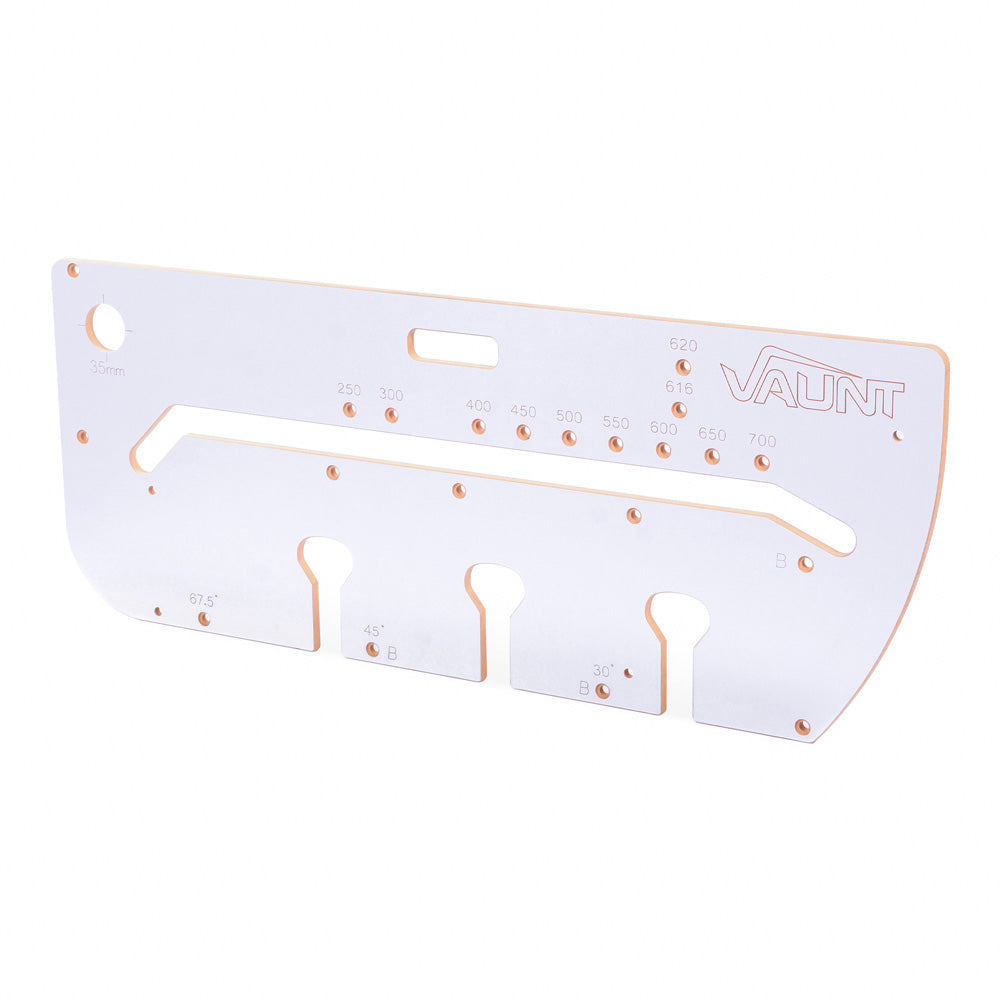

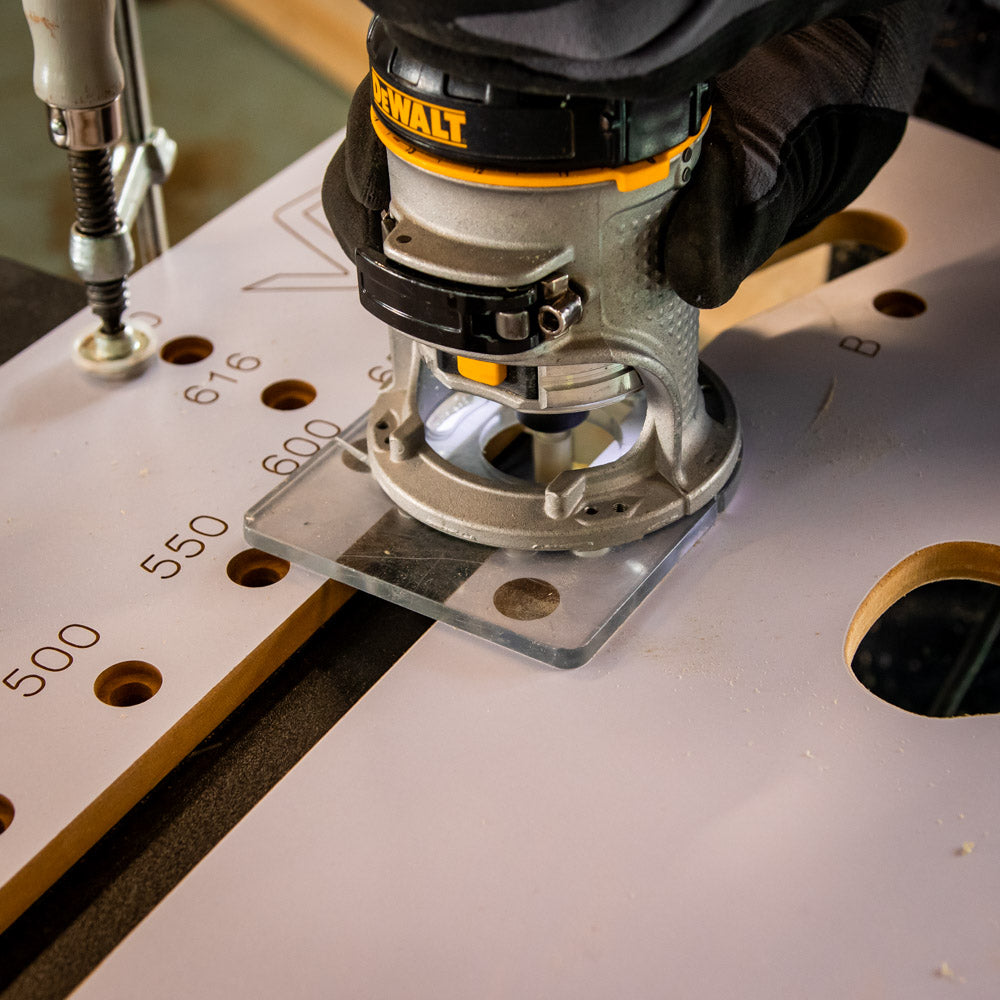

The Vaunt 700mm Trade Worktop Jig is made of hard-wearing laminate faced MDF 13mm thick jig that cuts both parts of the joint in 15 minutes including setting up. Left hand and right-hand corners, 400mm radius peninsular joint, 45° end cut with slight radius, 45° trade corner solution for hob units, 100mm radius corner, 40mm radius corner, 35mm kitchen door hole and 3/4inch BSP hole for mixer taps. Fixed lengths for 250mm, 300mm, 400mm, 450mm, 500mm, 550mm, 600mm, 616mm, 650mm and 700mm wide worktops. Cuts up to 40mm thick worktops with or without anti-drip post formed edge. Three open-ended bolt recesses (dog bone style) for 150mm bolts. Features: 45° End Cut 40mm Corner Radius 100mm Corner Radius 400mm Corner Radius 45° Corner Mitre Joint Female cut material width loss 35mm 3x Bolt recesses Bolt recess centres 175 + 175mm Bolt recess width 14mm

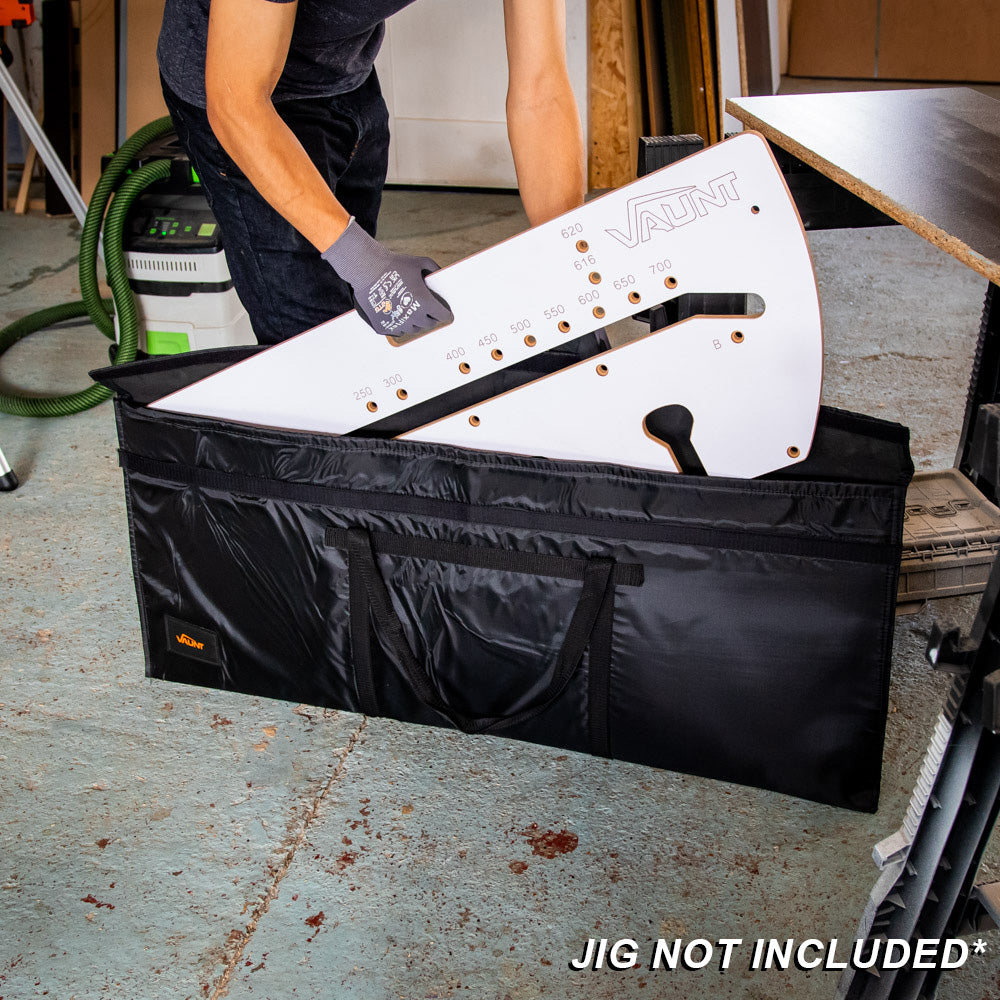

CASE KEY FEATURES
- Made to fit 700mm sized worktop jigs
- Suitable for Vaunt and other brands
- Hand carry strap for ease of carrying between jobs
- Protects jig within hard wearing case
SPECIFICATIONS
Specifications | Details |
---|---|
Dimensions | 985mm x 390mm x 12mm |
Pack Size | 1 |
Product Weight | 5.4kg |
Product Material | MDF |
WARRANTY INFORMATION
