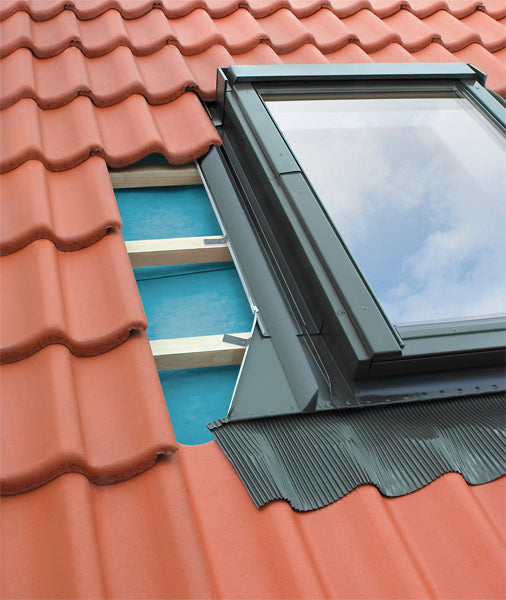

FAKRO - Thermo Flashing Kit for Interlocking Tile & Slate 90mm (EHV-AT)

The Standard Depth Thermo Flashing Kit for Interlocking Tile & Stone Slate up to 90mm (EHV-AT) is a universal, thermally insulated solution designed for a tight and energy-efficient connection between windows and roofing materials. With advanced insulation features, it ensures a "warm" installation, reducing thermal bridging and enhancing overall energy efficiency.

What makes the EHV-AT flashing kit the perfect choice?
•    Universal flashing suitable for all types of roof coverings up to 90mm profile depth (excluding natural non-interlocking slates).
•    Provides a thermo-insulated frame with flexible insulation material glued to the inside of the flashing, adhering tightly to the window frame.
•    Allows for insulation of the window both above and below the batten level, with an additional wool insulating kit (XDP) enhancing insulation below the batten.
•    Can improve the U-value by up to 15% (when used with the XDP Kit), depending on window type and size.
•    Compatible with all wooden and aluminium-clad plastic roof windows for versatile application.
•    Suitable for roofs with pitches between 15° and 90°, providing flexibility for various installations.
•    Can be used for individual windows, horizontal and vertical combinations, or block groups at a standard installation depth of "V".
•    Finished in RAL7022, offering a modern and seamless aesthetic that integrates perfectly with the roofline.
