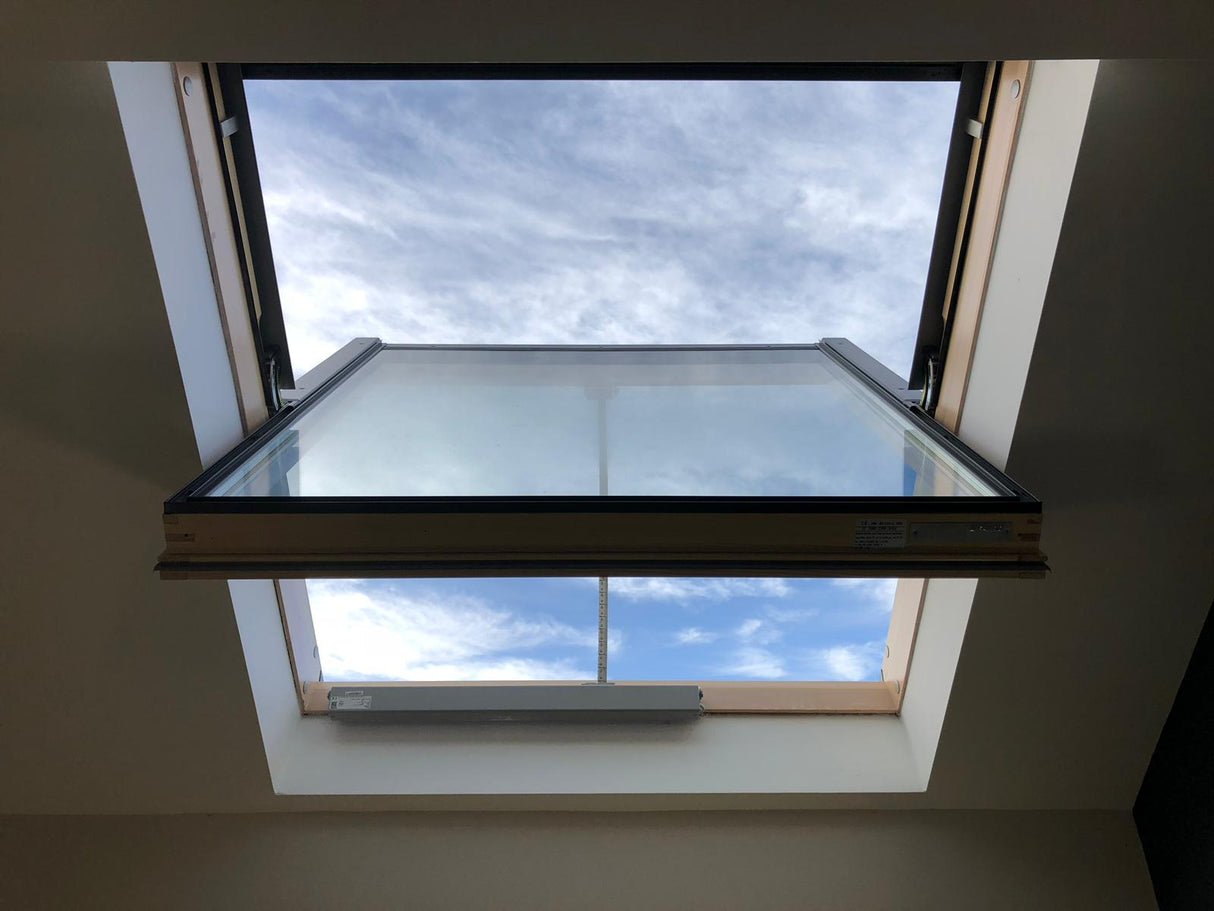

FAKRO - Natural Pine Double Glazed Smoke Ventilation Window (FSR P2)

The Natural Pine Double Glazed Smoke Ventilation Window (FSR P2) is an advanced, reliable solution for smoke and heat ventilation in buildings, designed to meet safety standards while providing ease of maintenance. This window system combines natural pine aesthetics with the performance of laminated double glazing and an integrated actuator for automated operation, ensuring safety, durability, and high efficiency.

What makes the FSR roof window the perfect choice?
•    FSC Certified wood, ensuring sustainable sourcing.
•    BBA Approved (02/3944), guaranteeing quality and reliability.
•    Non-Vented, with a “topSafe” security system featuring a reinforced hinge and keep, along with a steel slat in the lower part of the sash, achieving class III safety as per EN13049.
•    External aluminium finished in RAL7022, providing a sleek, modern appearance and weather resistance.
•    Natural pine wood frame with an internal finish of 2 layers of clear lacquer, ensuring a polished, durable interior.
•    Glass Construction (outside to inside):
o    4mm toughened outer pane
o    14mm steel spacer filled with inert Argon gas
o    6.8mm internal pane with anti-burglary laminate (33.2, class P2A, EN 356,1(B)1 wg EN 12600), complete with a low-emission coating.
o    U-Value of 1.1 W/m²K for the glass.
o    G (%) = 52, tv (%) = 75.

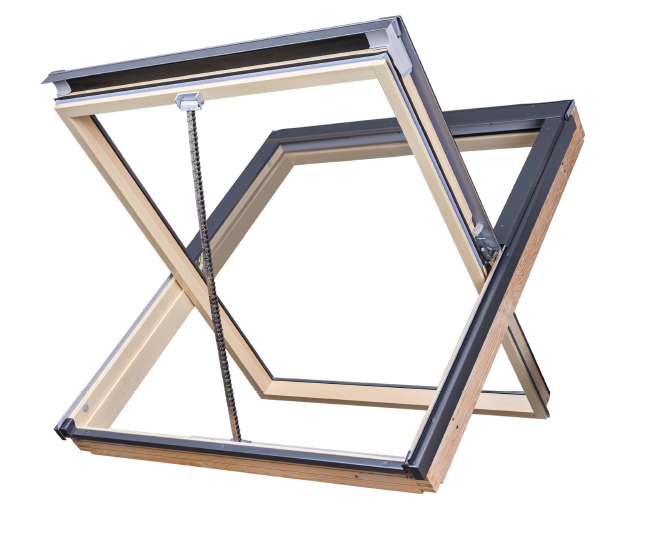

•    Sash Rotation for Cleaning: The actuator chain can be disconnected, allowing the sash to rotate through 180° for easy cleaning of the outer pane. The sash blocking bolt ensures safe cleaning during rotation.
•    Complies with the Harmonised Standard EN 12101-2:2003.
•    Suitable for roof pitches between 15° and 90°.
•    Flashing included to suit the specific roof pitch and covering—ensure confirmation of roof pitch and covering before placing an order.

Package Includes:
o    FSR P2 Natural Pine Internal, laminated double-glazed, centre pivot smoke ventilation window
o    KA54 Chain Drive Actuator opening the sash to 90°.
o    Control Unit with Break Glass and Ventilation Switch (RZN 4503-T).
o    Emergency Power Back Up (12V/3.2AH batteries).
o    Smoke Sensor (SD-O-371) and Break Glass Alarm (RT45).
