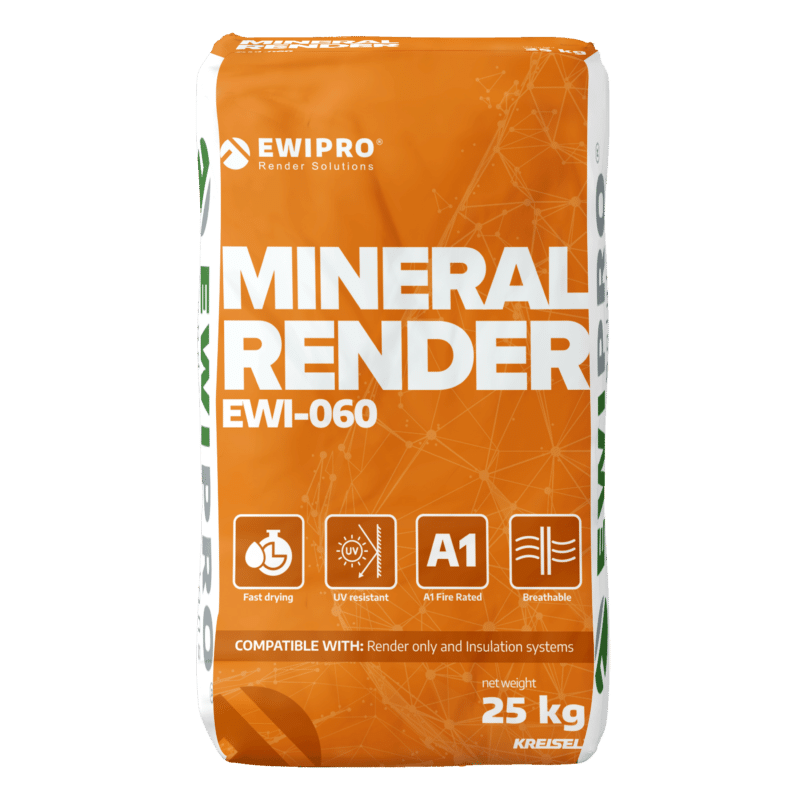

EWI-060 Mineral Render

The EWI-060 Mineral Render is a BBA-approved decorative render. It is designed to be either applied by hand or spray machine as part of an external insulation system or on a thin-coat render-only system. The Mineral Render needs to be sealed with an approved silicone external masonry paint to ensure the product performance is consistent.

Warning: without Silicone Paint application, the topcoat will not be sealed and will increase the risk of lime bloom. This render is suitable for application onto EPS and Mineral Wool external wall insulation systems. It is a fabulous finish when installing with the Mineral Wool system, as it helps to provide a completely breathable system.

The EWI-060 Mineral Render is sold in a standard 1.5mm grain size but is also available in three other grain sizes. Other grain sizes are subject to a minimum order quantity of 40 bags and an average delivery time of 5-10 working days.

Preparation:

Because this product comes as a dry mix, it needs combining with water before application. You can do this using a mechanical mixture or manually with a paddle mix.

Mineral Render Application

The render is applied to the substrate using a notched trowel. The render should be applied at a thickness that corresponds with the chosen grain size. For example, with a grain size of 1.5mm, the render should be applied at a 1.5mm thickness.

Once you’ve applied the Mineral Render it should take roughly 12 hours to dry (depending upon the weather conditions). Once set, you will need to use the EWI-005 Silicone paint to seal it. You can apply our silicone paint with a spray machine, a roller or simply by using a paintbrush.

Application Conditions

• Render primer: EWI-330 Mineral/ Acrylic Primer
• Application and setting temperature (air, substrate, materials): from +5°C to +25°C
• Grain size distribution: 1.5mm
• Colours: a range of 380 colours when painted with coloured Silicone Paint

Mineral Render Coverage Rates

• 1.5mm: 9–10m2 per 25kg bag (once mixed with water).

Please note: alternative grain sizes are available, subject to minimum order quantities and lead times.

Storage Conditions

This product comes in powder form in a 25kg paper bag.

Store in a cool, dry place. Avoid ingress of water. Shelf life: up to 12 months from the date of manufacture.

Frequently Asked Questions

1.       Can Mineral Render be applied with a spray machine?

Yes, Mineral Render can be applied using a spray machine. We have tested Mineral Render using the Euromair DropPro 8P Thin Coat Render Kit spray machine.

2.       What grain sizes can you choose from?

Mineral Render is sold in a standard 1.5mm grain size but is also available in 1mm, 2mm, and 3 mm. These additional grain sizes are subject to a minimum order quantity of 40 bags and have an average delivery time of 5-10 working days.

3.       How long does Mineral Render take to dry?

Mineral Render has an average drying time of 12 hours; however, in colder conditions drying time may be extended past this.

4.       What temperatures can I use Mineral Render in?

You can use Mineral Render in a temperature range of +5°C to +25°C. Mineral Render is typically used during colder months due to the accelerated drying times compared to other renders, such as Silicone Render.

5.       How can I make my Mineral Render waterproof?

Mineral Render needs to be sealed with one of our Silicone Paints to ensure consistent product performance. Silicone Paint also creates a waterproof coating protecting the system from water damage.
