PAVATEXTIL P Thermo-Acoustic Insulation
Description
Description
Cotton fibre-based thermo-acoustic recycled denim insulation.
- Good insulating capacity against thermal losses in winter and heat transmittance in the summer.
- Vapour-open.
- Possesses outstanding sound-insulation properties.
Product description

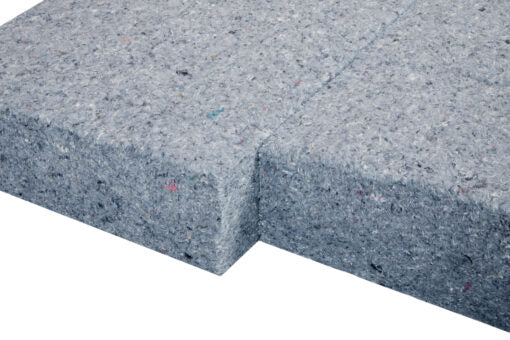

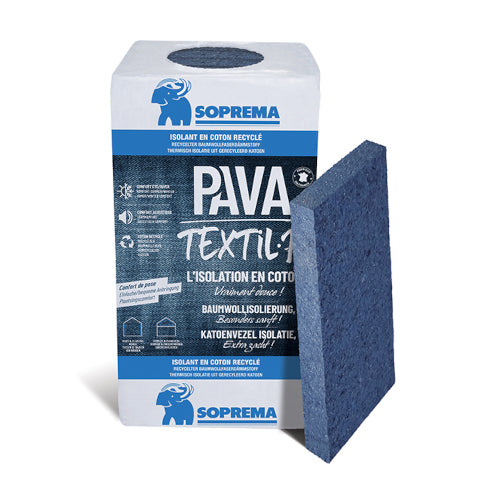

PAVATEXTIL P is a soft thermo-acoustic insulation board based on cotton fibres (85%), originating from recycled textile (jeans and velvet), and polyester fibres (15%).
The cotton fibres have hydrophilic and hygroscopic properties and have been subjected to anti-bacterial, fungal and flame retardant treatments, making them resistant to dust mites and mould.

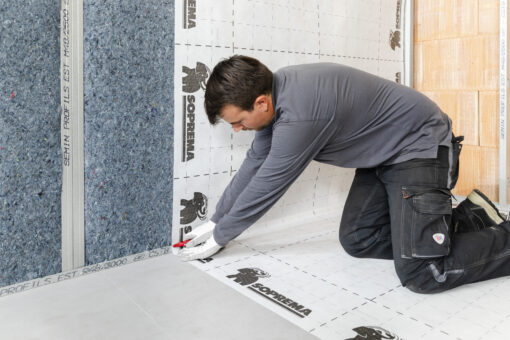

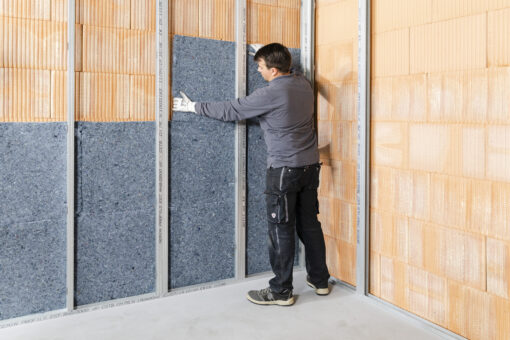

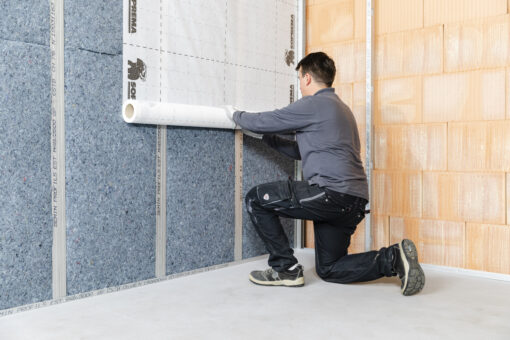

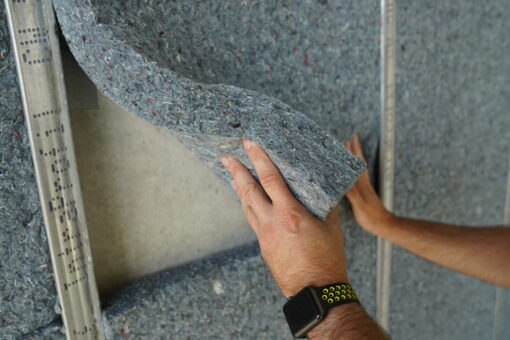

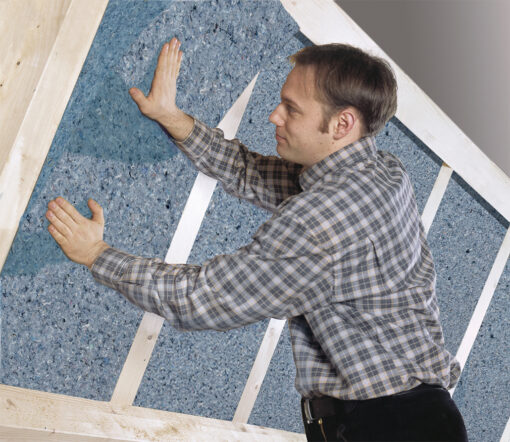

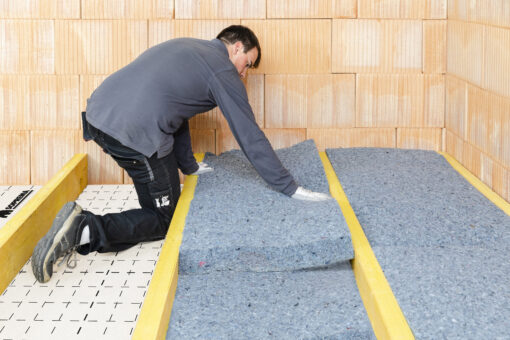

PAVATEXTIL P is mainly installed together with a vapour barrier between the wooden or metal framework, on the inside of walls and sloped roofs. It can also be used in attic floors.
Always consult the local regulations and installation guidelines of the manufacturer.
| Packaging | ||||||
|
Thickness
[mm] |
Boards/pallet | Boards/pack |
Dimensions
[mm] |
m2/pallet
[m2] |
m2/pack
[m2] |
Thermal resistance (Rd)
[m2.K/W] |
| 45 | 104 | 13 | 1200 x 600 | 74,88 | 9,36 | 1,15 |
| 60 | 80 | 10 | 1200 x 600 | 57,60 | 7,20 | 1,50 |
| 80 | 56 | 7 | 1200 x 600 | 40,32 | 5,04 | 2,05 |
| 100 | 48 | 6 | 1200 x 600 | 34,56 | 4,32 | 2,55 |
| 120 | 40 | 5 | 1200 x 600 | 28,80 | 3,60 | 3,05 |
| 145 | 32 | 4 | 1200 x 600 | 23,04 | 2,88 | 3,70 |
| 160 | 24 | 3 | 1200 x 600 | 17,28 | 2,16 | 4,10 |
| 180 | 24 | 3 | 1200 x 600 | 17,28 | 2,16 | 4,60 |
| 200 | 24 | 3 | 1200 x 600 | 17,28 | 2,16 | 5,10 |
| Characteristics Density [kg/m3] ± 20 |
| Thermal conductivity (λd) (EN 12667) [W/(m.K)] 0,039 |
| Specific heat capacity (c) [J/(kg.K)] 1600 |
| Acoustic noise reduction index * (Rw+C) [dB] 39 |
| Reaction to fire (EN 13501–1) E |
| Short-term water absorption by partial immersion [kg/m2] 8 |
| Edge profile straight |
| Resistance to mold growth Class 0 |
Health, Environment and Safety
This product does not contain any substance which is likely to be detrimental to your health or to the environment and complies with the generally admitted Health and Safety Requirements.
Storage
Store the insulation boards on a flat surface, keep dry and protected from sunlight. Pallets must not be stacked.

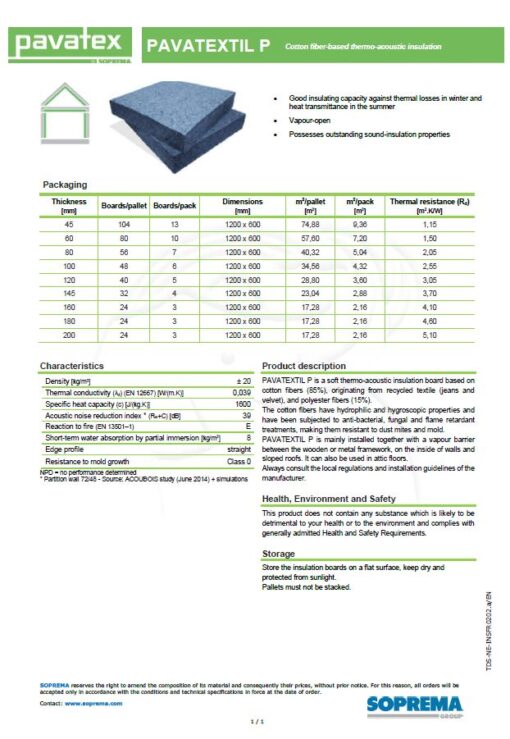

Download
